Home > Medical Devices > Nebulizers > Compressor Nebulizer 03
compressor-nebulizer-03

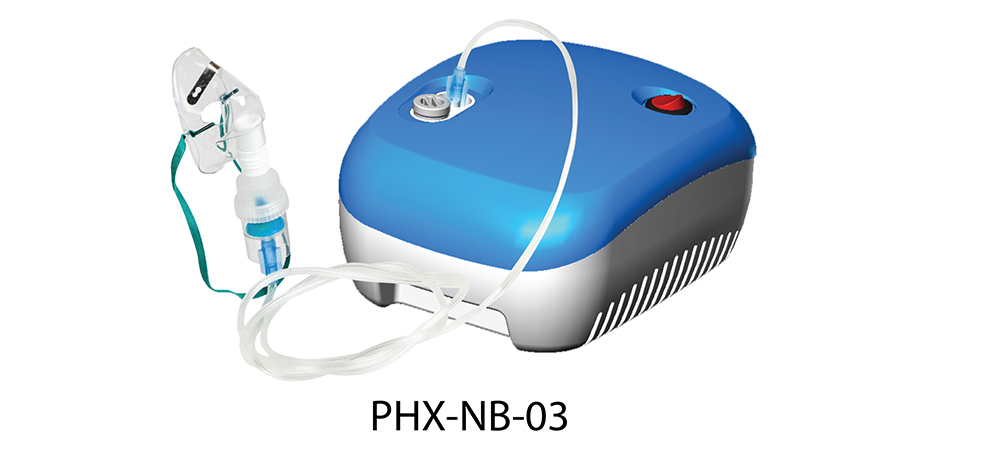

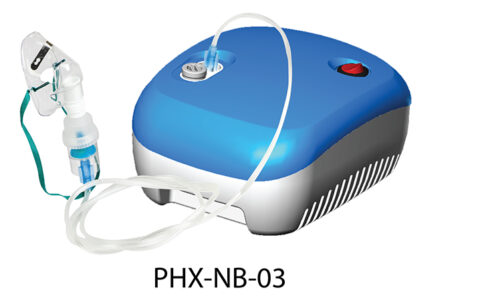

Compressor Nebulizer 03

Phoenix Compressor Nebulizer transforms liquid medicine into an inhalable mist or aerosol form, enabling swift absorption in the patient’s lower respiratory tract in clinical and home environment.

Share This:

Linkedin Facebook Twitter Envelope Icon-whatsapp-1
Enquiry Form
Watch More
User Manual
  1. One-button operation, low noise, no vibration, strong airflow with air filtration
  2. Easy to attach and remove medical-grade, air tube, and nebulizer facemask in different size
  3. Consistent, ultra-fine medicine particle size and medicine cup with scale indicator
  4. Compact, lightweight, handheld nebulizer with ergonomic and anti-slip body
  1. Easy to use, clean, disinfect, and store to enhance personal care and helps maintain a healthy lifestyle
  2. Nebulization therapy helps in short breathing treatment, eases respiratory area muscles, and permits air to flow more easily to the lungs for relaxing breathing
  3. Suitable for all difficulty breathing treatments like chronic respiratory diseases including the treatment of asthma, cough, cystic fibrosis/lung fibrosis, etc, and COPD symptoms, which includes chronic bronchitis and emphysema, a lung infection that includes acute bronchitis, pneumonia, and fungal and viral infections including breathing symptoms in covid-19
  4. Innovative design makes it easy to hold by everyone which requires minimal patient cooperation for aerosol medicine delivery for treating respiratory tract diseases in a convenient way
  1. Nebulizer treatment can be used for therapeutic purposes, to treat headaches, or rapid heartbeat, prevent wheezing, shortness of breath, coughing, and tightness in the chest
  2. Sterile saline or any drug can also be delivered through a nebulizer to open the airways and thin the secretions or mucous in the lungs and nose which makes it easier to cough up
  3. At home, work, hospital, nursing homes, hotel covid centres, and other medical places
  4. Suitable for all age groups, ideal for infants, children, and elderly people who cannot use or coordinate with any other steam inhaler machine
  1. Clean and disinfect the nebulizer parts and masks before using them
  2. Place the device on a flat surface, such that the unit can be easily reached when you are seated
  3. Remove the cover of the medicine cup and add the correct amount of prescribed medication to the cup using the scale indicator on it and close the cover properly, do not fill more than 5 ml
  4. Attach the medicine cup’s one end to the face mask or mouthpiece and another end to the air tube tightly, and then connect another end of that air tube to the compressor nebulizer
  5. Insert the power plug into a power outlet and turn the power button on
  6. Turn the on/off button to start nebulization and make sure the aerosol coming out from the face mask or mouthpiece
  7. Slowly start to take a deep breath and then breathe in the nebulizer medications for about 15 minutes, keep calm and sit in a relaxed posture, and then make sure mask is near your nose
  8. When you are about to finish slightly tilt and shake the medicine cup towards yourself to make sure all medication is used
  9. Refill the liquid medicine if needed and if you are done press the on/off button on the nebulizer and turn off the power button and unplug from the power outlet
  10. Make sure to clean or disinfect the medicine chamber and facemask or mouthpiece after each inhalation process
  1. Brand Name: Phoenix Compressor Nebulizer
  2. Model Number: PHX-NB-03
  3. Application: Medicine Delivery Device for Respiratory/Lungs Treatment
  4. Classification: Class II Equipment, Type B Applied Part
  5. Warranty: 24 months
  6. Certification: ISO 9001, ISO 13485
  7. Technology: Nebulizing Technology
  8. Material: Plastic (ABS, PVC), Copper, Silicon, Nylon, SS, Motor, Electronics Components
  9. Colour: White and Blue (customized)
  10. Dimension: H 92 x L 200 x W 155 mm
  11. Weight: 1300 g
  12. Cord Size: 1.5 m
  13. Medication Cup Capacity: 5 ml
  14. Particle Size: 0.4 to 8 µm
  15. MMAD: 4 μm
  16. On-Time: 30 minutes
  17. Off-Time: 40 minutes
  18. Sound Level: 70 dBA (at 1 meter distance)
  19. Nebulization Rate: 0.2 ml/min or above
  20. Air Pressure: 28 PSI
  21. Operating Pressure Range: 8 to 16 PSI
  22. Operating Temperature Range: 0°C to 40°C
  23. Power Supply: 230 v AC/50 hz
  24. Accessories: 1 Compressor Nebulizer, 1 Air Tube, 3 Filters, 1 Adult Mask, 1 Child Mask, 1 Instruction Manual
  25. OEM/ODM/Private Label: Available with Personalized Logo
  1. One-button operation, low noise, no vibration, strong airflow with air filtration
  2. Easy to attach and remove medical-grade, air tube, and nebulizer facemask in different size
  3. Consistent, ultra-fine medicine particle size and medicine cup with scale indicator
  4. Compact, lightweight, handheld nebulizer with ergonomic and anti-slip body
  1. Easy to use, clean, disinfect, and store to enhance personal care and helps maintain a healthy lifestyle
  2. Nebulization therapy helps in short breathing treatment, eases respiratory area muscles, and permits air to flow more easily to the lungs for relaxing breathing
  3. Suitable for all difficulty breathing treatments like chronic respiratory diseases including the treatment of asthma, cough, cystic fibrosis/lung fibrosis, etc, and COPD symptoms, which includes chronic bronchitis and emphysema, a lung infection that includes acute bronchitis, pneumonia, and fungal and viral infections including breathing symptoms in covid-19
  4. Innovative design makes it easy to hold by everyone which requires minimal patient cooperation for aerosol medicine delivery for treating respiratory tract diseases in a convenient way
  1. Nebulizer treatment can be used for therapeutic purposes, to treat headaches, or rapid heartbeat, prevent wheezing, shortness of breath, coughing, and tightness in the chest
  2. Sterile saline or any drug can also be delivered through a nebulizer to open the airways and thin the secretions or mucous in the lungs and nose which makes it easier to cough up
  3. At home, work, hospital, nursing homes, hotel covid centres, and other medical places
  4. Suitable for all age groups, ideal for infants, children, and elderly people who cannot use or coordinate with any other steam inhaler machine
  1. Clean and disinfect the nebulizer parts and masks before using them
  2. Place the device on a flat surface, such that the unit can be easily reached when you are seated
  3. Remove the cover of the medicine cup and add the correct amount of prescribed medication to the cup using the scale indicator on it and close the cover properly, do not fill more than 5 ml
  4. Attach the medicine cup’s one end to the face mask or mouthpiece and another end to the air tube tightly, and then connect another end of that air tube to the compressor nebulizer
  5. Insert the power plug into a power outlet and turn the power button on
  6. Turn the on/off button to start nebulization and make sure the aerosol coming out from the face mask or mouthpiece
  7. Slowly start to take a deep breath and then breathe in the nebulizer medications for about 15 minutes, keep calm and sit in a relaxed posture, and then make sure mask is near your nose
  8. When you are about to finish slightly tilt and shake the medicine cup towards yourself to make sure all medication is used
  9. Refill the liquid medicine if needed and if you are done press the on/off button on the nebulizer and turn off the power button and unplug from the power outlet
  10. Make sure to clean or disinfect the medicine chamber and facemask or mouthpiece after each inhalation process
  1. Brand Name: Phoenix Compressor Nebulizer
  2. Model Number: PHX-NB-03
  3. Application: Medicine Delivery Device for Respiratory/Lungs Treatment
  4. Classification: Class II Equipment, Type B Applied Part
  5. Warranty: 24 months
  6. Certification: ISO 9001, ISO 13485
  7. Technology: Nebulizing Technology
  8. Material: Plastic (ABS, PVC), Copper, Silicon, Nylon, SS, Motor, Electronics Components
  9. Colour: White and Blue (customized)
  10. Dimension: H 92 x L 200 x W 155 mm
  11. Weight: 1300 g
  12. Cord Size: 1.5 m
  13. Medication Cup Capacity: 5 ml
  14. Particle Size: 0.4 to 8 µm
  15. MMAD: 4 μm
  16. On-Time: 30 minutes
  17. Off-Time: 40 minutes
  18. Sound Level: 70 dBA (at 1 meter distance)
  19. Nebulization Rate: 0.2 ml/min or above
  20. Air Pressure: 28 PSI
  21. Operating Pressure Range: 8 to 16 PSI
  22. Operating Temperature Range: 0°C to 40°C
  23. Power Supply: 230 v AC/50 hz
  24. Accessories: 1 Compressor Nebulizer, 1 Air Tube, 3 Filters, 1 Adult Mask, 1 Child Mask, 1 Instruction Manual
  25. OEM/ODM/Private Label: Available with Personalized Logo
