Home > Medical Devices > Lancing Device
lancing-device

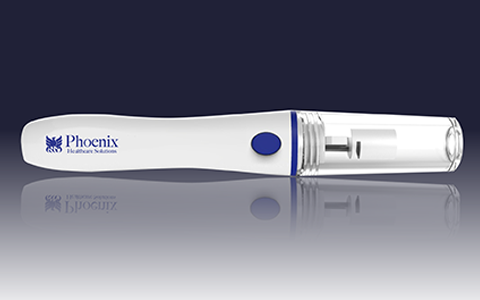

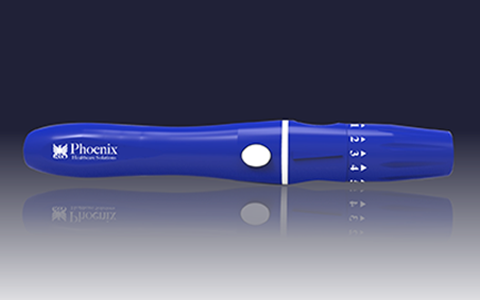

Lancing Device

Phoenix Lancing Device to be used with sterile, ultra-thin lancet quick enough to penetrate the skin with single press button activation, which requires minimal effort for taking drops of blood, easily in a clinical and home environment.

Share This:

Linkedin Facebook Twitter Envelope Icon-whatsapp-1
Enquiry Form
Watch More
User Manual
  1. Pocket-friendly, lightweight, sturdy, portable, and reusable lancet device with an anti-slip body
  2. Innovative design, spring-loaded with a smooth sliding barrel and activated pinhole
  3. Tapered protective cover gives a fixed penetration area and no vibration for error-free prick
  4. Rotating cap with arrow indicator and 5 levels of precision depth setting to minimize pain
  1. Easy to use, clean, disinfect, and store to enhance personal care and helps maintain a healthy lifestyle
  2. Lancet pen can be reused with a single-use lancet for blood sugar tests, allergy testing, covid-19 testing, diagnostic testing, cholesterol testing, coagulation testing, blood gas analysis, and other blood tests
  3. Spring mechanism and auto-retracting back safety feature with high speed ensure that lancets do not penetrate the skin repeatedly and give well-controlled penetration according to skin and medical test requirements
  4. Standard round-based lancet holder keeps the lancet fit and stays inside even if you shake the device with a firm locking end cap
  5. Encourage better health and safety management and ensure protection for patients and operators from accidental needle stick injury or cross-infection
  1. Lancing pen can be used by anyone, especially diabetic patients, people who suffering from a stroke, or with chronic physical conditions such as arthritis, trigger finger, carpel tunnel, and others
  2. Fingertip lancing device is approved for non-fingertip testing sites or alternate site testing (AST) and can be used on the ear lobe, ball of the thumb and little finger, palm, thigh, upper arm, outside and inside the forearm, etc, and in the infant side area of the heel to draw blood
  3. At home, work, hospital, covid centres, and other medical places
  4. Convenient to have while camping or traveling by train, bus, air, or car to maintain healthcare
  5. For all age groups, best for infants and elderly people for extra comfort and a quick process
  1. Wash hands with soap and water and make sure they are dry
  2. Before pricking your fingertip, little prior warm up your hand to improve blood circulation
  3. Remove the lancing device cover by rotating it anti-clockwise
  4. Insert a new sterile, tri bevelled, and ultra-thin lancet into the lancet holder and push down firmly until it is fully seated, then twist and pull off its safety cap and save the cap for later use
  5. Put back the lancing device cover and rotate it clockwise securely, it comes with an adjustable cap and arrow indicator
  6. Rotate the adjustable cap and set the depth settings from 1 to 5 levels as per requirement, make sure the arrow indicator is on your selected number
  7. Then hold the lancing device and slowly pull the sliding barrel back
  8. A click is heard, and a side button pops up indicating that the lancing device is ready and set to use
  9. Select the fingertip you want to prick and sanitize it with a 70% alcohol prep pad (gamma sterilized wipes used to sanitize skin before injection, finger prick, or first-aid to decrease germs in minor cuts, scrapes, and burns.)
  10. Place the blood lancet pen against the sanitized fingertip you want to prick, try to prick slightly off-centre of the fingertip and not the bullseye
  11. Press the side activation button, once the action has been performed side button pops in
  12. Take a drop of blood for testing and monitoring and wipe out the excess blood with a freshly open 70% alcohol prep pad (do not reuse the old one)
  13. Once again, take off the lancing device cover and remove the lancet holding its body, then firmly insert the exposed tip of the lancet into the horizontal direction of the safety cap so that the tip will be inserted easily
  14. Throw the lancet in the trash and not in your recycling bin and clean your hands
  15. Sanitize the lancing device cover and body with alcohol wipes for the next time use
  16. Only for personal users don’t share it with anyone for hygiene purposes
  1. Brand Name: Phoenix Lancing Device
  2. Model Number: NA
  3. Application: Blood-Sampling Device Used at Fingertip and For Non-Fingertip Testing Sites to Draw Blood Drops for Diagnostic Purposes with Help of the Lancet
  4. Classification: Class II
  5. Warranty: 5 years
  6. Certification: ISO 9001, ISO 13485, Europe/CE, UK
  7. Technology: Spring and Triggering Mechanism
  8. Material: Plastic (ABS), SS
  9. Colour: White (customized)

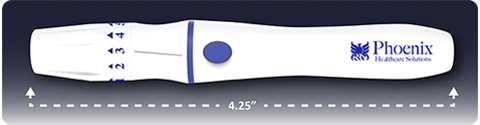

  10. Dimension: L 108 x W 16 mm
  11. Weight: 11.6388 g
  12. Lancet Holder Capacity: Single Lancet at A Time
  13. Lancet Shape: Round-Based Lancet (L 30 x W 06 mm)
  14. Lancet Needle Tip: 3 mm
  15. Range of 5 Depth Penetration: 0.8 To 2.3 mm
  16. Storage Temperature: At Room Temperature
  17. Accessories: 1 Lancing Device, 1 Clear AST Cap for Alternative Site Testing, Instruction Manual
  18. OEM/ODM/Private Label: Available with Personalized Logo
  1. Pocket-friendly, lightweight, sturdy, portable, and reusable lancet device with an anti-slip body
  2. Innovative design, spring-loaded with a smooth sliding barrel and activated pinhole
  3. Tapered protective cover gives a fixed penetration area and no vibration for error-free prick
  4. Rotating cap with arrow indicator and 5 levels of precision depth setting to minimize pain
  1. Easy to use, clean, disinfect, and store to enhance personal care and helps maintain a healthy lifestyle
  2. Lancet pen can be reused with a single-use lancet for blood sugar tests, allergy testing, covid-19 testing, diagnostic testing, cholesterol testing, coagulation testing, blood gas analysis, and other blood tests
  3. Spring mechanism and auto-retracting back safety feature with high speed ensure that lancets do not penetrate the skin repeatedly and give well-controlled penetration according to skin and medical test requirements
  4. Standard round-based lancet holder keeps the lancet fit and stays inside even if you shake the device with a firm locking end cap
  5. Encourage better health and safety management and ensure protection for patients and operators from accidental needle stick injury or cross-infection
  1. Lancing pen can be used by anyone, especially diabetic patients, people who suffering from a stroke, or with chronic physical conditions such as arthritis, trigger finger, carpel tunnel, and others
  2. Fingertip lancing device is approved for non-fingertip testing sites or alternate site testing (AST) and can be used on the ear lobe, ball of the thumb and little finger, palm, thigh, upper arm, outside and inside the forearm, etc, and in the infant side area of the heel to draw blood
  3. At home, work, hospital, covid centres, and other medical places
  4. Convenient to have while camping or traveling by train, bus, air, or car to maintain healthcare
  5. For all age groups, best for infants and elderly people for extra comfort and a quick process
  1. Wash hands with soap and water and make sure they are dry
  2. Before pricking your fingertip, little prior warm up your hand to improve blood circulation
  3. Remove the lancing device cover by rotating it anti-clockwise
  4. Insert a new sterile, tri bevelled, and ultra-thin lancet into the lancet holder and push down firmly until it is fully seated, then twist and pull off its safety cap and save the cap for later use
  5. Put back the lancing device cover and rotate it clockwise securely, it comes with an adjustable cap and arrow indicator
  6. Rotate the adjustable cap and set the depth settings from 1 to 5 levels as per requirement, make sure the arrow indicator is on your selected number
  7. Then hold the lancing device and slowly pull the sliding barrel back
  8. A click is heard, and a side button pops up indicating that the lancing device is ready and set to use
  9. Select the fingertip you want to prick and sanitize it with a 70% alcohol prep pad (gamma sterilized wipes used to sanitize skin before injection, finger prick, or first-aid to decrease germs in minor cuts, scrapes, and burns.)
  10. Place the blood lancet pen against the sanitized fingertip you want to prick, try to prick slightly off-centre of the fingertip and not the bullseye
  11. Press the side activation button, once the action has been performed side button pops in
  12. Take a drop of blood for testing and monitoring and wipe out the excess blood with a freshly open 70% alcohol prep pad (do not reuse the old one)
  13. Once again, take off the lancing device cover and remove the lancet holding its body, then firmly insert the exposed tip of the lancet into the horizontal direction of the safety cap so that the tip will be inserted easily
  14. Throw the lancet in the trash and not in your recycling bin and clean your hands
  15. Sanitize the lancing device cover and body with alcohol wipes for the next time use
  16. Only for personal users don’t share it with anyone for hygiene purposes
  1. Brand Name: Phoenix Lancing Device
  2. Model Number: NA
  3. Application: Blood-Sampling Device Used at Fingertip and For Non-Fingertip Testing Sites to Draw Blood Drops for Diagnostic Purposes with Help of the Lancet
  4. Classification: Class II
  5. Warranty: 5 years
  6. Certification: ISO 9001, ISO 13485, Europe/CE, UK
  7. Technology: Spring and Triggering Mechanism
  8. Material: Plastic (ABS), SS
  9. Colour: White (customized)
  10. Dimension: L 108 x W 16 mm
  11. Weight: 11.6388 g
  12. Lancet Holder Capacity: Single Lancet at A Time
  13. Lancet Shape: Round-Based Lancet (L 30 x W 06 mm)
  14. Lancet Needle Tip: 3 mm
  15. Range of 5 Depth Penetration: 0.8 To 2.3 mm
  16. Storage Temperature: At Room Temperature
  17. Accessories: 1 Lancing Device, 1 Clear AST Cap for Alternative Site Testing, Instruction Manual
  18. OEM/ODM/Private Label: Available with Personalized Logo
